Any custom network can carry a firewall policy: a default verdict per direction plus an ordered list of rules. MacVisor compiles it into the Mac's packet filter (pf), so the guest cannot turn it off and nothing is installed in it.

Rules edited per network become a pf anchor loaded by a small root helper; guest traffic crossing the host bridge is matched against it.

Open Networks, select a custom network, and switch on Enable Firewall.

Directions are relative to the VMs

Direction	Means
Inbound	Traffic arriving at the VMs on this network
Outbound	Traffic the VMs send

Each direction has a default, Allow or Deny. A rule names the far end of the flow: the destination of an outbound rule, the source of an inbound one.

Rules

A rule is: enabled, direction, action, protocol, remote CIDR, ports.

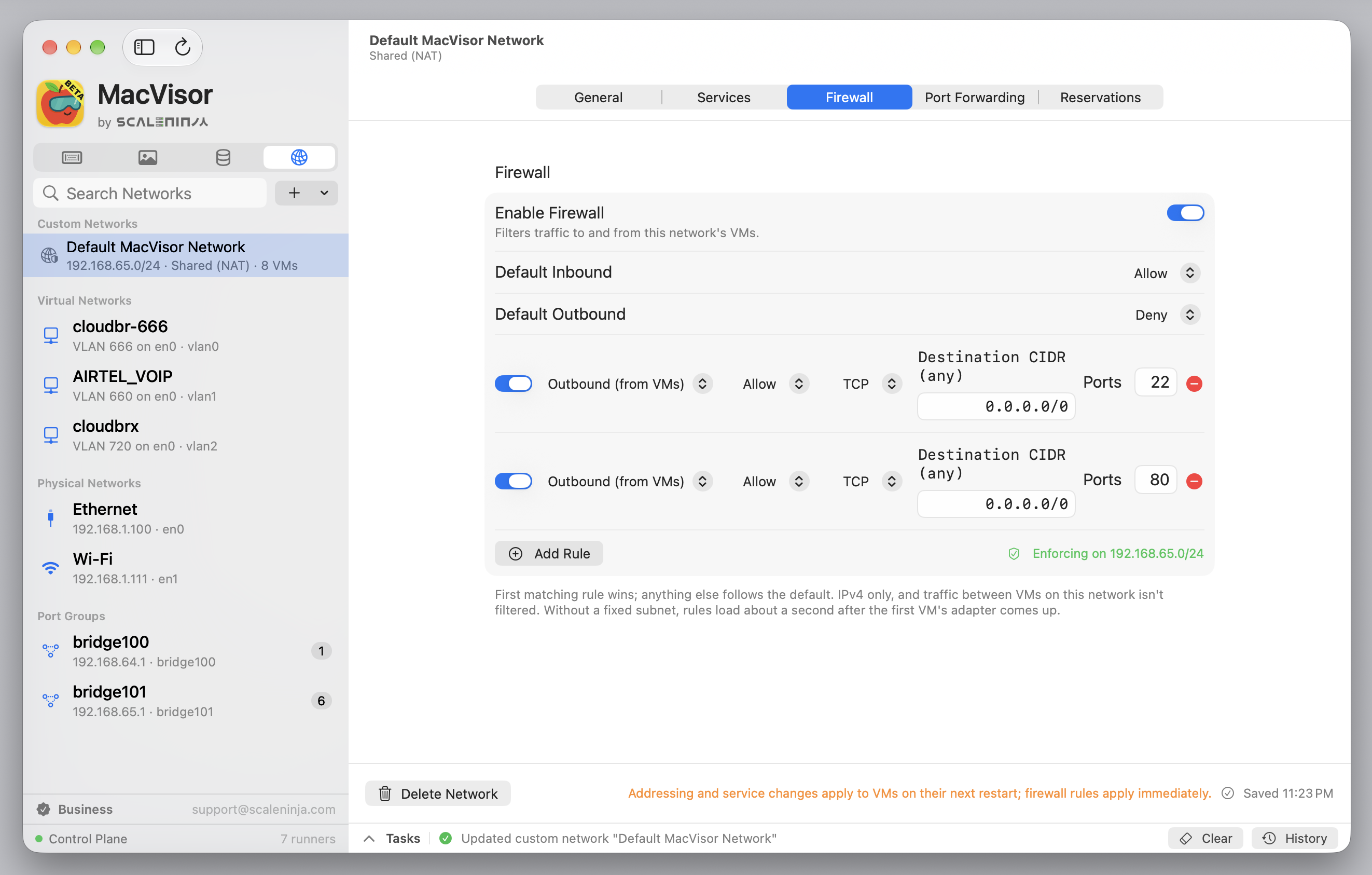

A network's Firewall tab: outbound denied by default, with TCP 22 and 80 allowed.

Protocol: Any, TCP, UDP, or ICMP. Ports apply to TCP and UDP.
Remote CIDR: 10.0.0.0/8, a bare address (192.168.1.50, treated as /32), or any.
Ports: one port (443) or a range (8000-8080); empty means all.

First match wins, top to bottom; unmatched traffic gets the direction's default. Allow rules are stateful, so replies to a permitted flow come back even when the other direction denies by default. A rule that can't be enforced as written, such as one with an invalid CIDR or port range, is marked in the editor and skipped; the other rules still apply, and the network's status counts the skipped ones.

A lab segment that may reach the internet but not the corporate LAN:

Direction	Action	Protocol	Remote	Ports
Outbound	Deny	Any	`10.0.0.0/8`
Outbound	Allow	TCP	`any`	`443`

with both defaults set to Deny.

What always stays open

DHCP within the segment, and DNS to the gateway when the DNS proxy is on. Without them a deny-by-default network would never hand out an address.

Applying

The background service applies every network's policy through the network helper, whether or not the app is open: when it starts, when you change a policy in the app or with mvz, and when a VM on the network starts. A changed policy takes effect at once, and pf state for the subnet is flushed so existing connections cannot coast on the old verdict. Switching Enable Firewall off withdraws that network's rules.

The Firewall section of the network says where it stands:

Status	Meaning
Enforcing on `<subnet>`	The rules are in pf; any skipped rules are counted beside it
Starts when a VM runs on this network	The network has no subnet yet; the rules load when its first VM starts
Needs approval to enforce	The network helper isn't installed or approved
Not enforced	Something is in the way; the reason is shown under the rules

The network helper is normally installed during first-run setup. If you declined it, Approve… next to the status installs it with one administrator password; if macOS holds it for approval, turn it on in System Settings → Login Items & Extensions.

The helper keeps the last policy and re-applies it at boot, before anyone logs in. Uninstalling MacVisor clears the rules.

From the command line

mvz networks firewall lab on --outbound deny --allow out:udp:53 --allow out:tcp:443
mvz networks firewall lab --inbound deny
mvz networks firewall lab --clear --deny out:any::10.0.0.0/8 --allow out:tcp:443
mvz networks firewall lab off

A rule is in|out[:tcp|udp|icmp|any[:<ports>[:<cidr>]]], each part optional from the right. Rules keep the order you type them, --allow and --deny mixed, and the first match wins. New rules go after the existing ones; --clear drops those first. In the --clear line the deny comes first, so TCP 443 to 10.x addresses is blocked while 443 anywhere else is allowed. The background service checks the rules and applies them before the command returns, whether or not the app is open. A rule that can't be enforced as written is refused, with the reason, and nothing is saved. The command prints the resulting rule list, numbered in the order it is evaluated, and whether it is in force:

Firewall on lab: on, enforced on 192.168.105.0/24 — inbound deny, outbound deny, 2 rules.
  1. deny outbound any to 10.0.0.0/8
  2. allow outbound tcp 443 to any
IPv6 is off on this network while the firewall is on (the firewall filters IPv4 only); running VMs keep theirs until every VM on it has stopped.

When the rules are not in force, the first line says on, but NOT enforced yet and the reason follows the list: most often that no VM has run on the network yet, or that the network helper isn't approved. mvz networks shows each firewall as on, pending (saved but not in force), or off.

Verifying

The network's status, or mvz networks firewall <network> with no other options, says whether the rules are in force. To read back what pf is enforcing, with per-rule match counters, use Terminal:

sudo pfctl -a 'com.apple/900.macvisor.firewall' -sr
sudo pfctl -ss

Limits worth knowing before you rely on it

What this firewall does not cover

IPv4 only. So that guests can't go around it, a network has no IPv6 routing while its firewall is on: NAT66 and router advertisement are off. VMs already running keep IPv6 until every VM on the network has stopped. A shared network with NAT44 off is the exception: IPv6 NAT is its only way out, so it keeps IPv6, unfiltered.
VM ↔ VM traffic on the same network is not filtered. It is switched inside vmnet and never reaches pf. Put workloads that must not reach each other on separate networks.
Custom networks only. Default NAT and bridged VMs don't cross a MacVisor-owned bridge, so there is nothing to attach a policy to.
Needs a subnet. Policy is keyed to the network's IPv4 subnet, so the rules load when the first VM on the network starts. A shared network's subnet can change when the network is recreated; the policy follows it, rules naming specific VM addresses may not. See Addressing.
Only subnets vmnet hands out. Rules apply only to a subnet inside 192.168.0.0/16, from /20 to /30, that doesn't overlap one of the Mac's own networks, such as your LAN. A network outside those limits shows Not enforced with the reason; other networks are unaffected.

How enforcement is wired

Rules live in a sub-anchor of pf's com.apple/* namespace, which the stock /etc/pf.conf already evaluates. MacVisor never edits pf.conf or reloads the main ruleset, because that would flush the anchors macOS installs for internet sharing and break NAT for other networks.

The helper receives policy, never packet-filter text, and compiles it itself, so a user-level process cannot express anything the interface does not already allow. See Security model.
