Apache CloudStack Build Installation Guide for Ubuntu/KVM on x86_64 & ARM64

This guide covers the building and installation of Apache CloudStack based IaaS cloud on Ubuntu using KVM, for both x86_64 and ARM64 architectures - from mini-pcs and commercial rack servers to Raspberry Pi 4/5 and Ampere Ultra servers.

New to CloudStack? Watch the intro first:

Getting Started

Install Ubuntu 24.04 LTS on your x86_64 or ARM64 host.

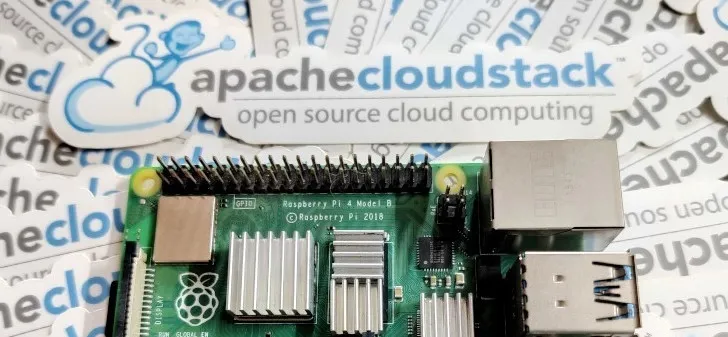

ARM64 hosts (Raspberry Pi 4/5)

Ensure 64-bit mode and GIC are enabled in /boot/firmware/config.txt:

[all]
arm_64bit=1
enable_gic=1

# NVME speed
dtparam=nvme
dtparam=pciex1_1=gen3
dtparam=pciex1_gen=3
usb_max_current_enable=1
max_usb_current=1

Ensure the universe repository is enabled in /etc/apt/sources.list, then install basic packages:

apt-get install openntpd openssh-server sudo vim htop tar

Verify KVM is available:

apt-get install cpu-checker
kvm-ok
# INFO: /dev/kvm exists
# KVM acceleration can be used

Optional: install CPU microcode for Intel hosts:

apt-get install intel-microcode

Allow root SSH access - set PermitRootLogin yes in /etc/ssh/sshd_config then restart:

systemctl restart ssh
passwd root

Network Setup

Set up host networking using Linux bridges to handle CloudStack's management, public, guest, and storage traffic. A single bridge cloudbr0 can handle all traffic types on the same physical network.

apt-get install bridge-utils

This guide assumes a 192.168.1.0/24 network.

Ubuntu Netplan Config

Create /etc/netplan/01-netcfg.yaml (comment out the default 50-cloud-init.yaml first), replacing eno1 with your actual NIC name and 192.168.1.10 with your host's IP:

network:
  version: 2
  renderer: networkd
  ethernets:
    eno1:
      dhcp4: false
      dhcp6: false
      optional: true
  bridges:
    cloudbr0:
      addresses: [192.168.1.10/24]
      routes:
        - to: default
          via: 192.168.1.1
      nameservers:
        addresses: [1.1.1.1, 8.8.8.8]
      interfaces: [eno1]
      dhcp4: false
      dhcp6: false
      parameters:
        stp: false
        forward-delay: 0

Apply and reboot:

netplan generate
netplan apply

Repo Setup

Run this on all hosts where CloudStack packages will be installed:

mkdir -p /etc/apt/keyrings
wget -O- http://packages.shapeblue.com/release.asc | gpg --dearmor | sudo tee /etc/apt/keyrings/cloudstack.gpg > /dev/null

echo deb [signed-by=/etc/apt/keyrings/cloudstack.gpg] http://packages.shapeblue.com/cloudstack/upstream/debian/4.22 / > /etc/apt/sources.list.d/cloudstack.list
apt-get update -y

Management Server Setup

apt-get update -y
apt-get install cloudstack-management mysql-server

# Optional: install usage server
apt-get install cloudstack-usage

Database Setup

Configure InnoDB settings in /etc/mysql/mysql.conf.d/mysqld.cnf:

[mysqld]
server_id = 1
sql-mode="STRICT_TRANS_TABLES,NO_ENGINE_SUBSTITUTION,ERROR_FOR_DIVISION_BY_ZERO,NO_ZERO_DATE,NO_ZERO_IN_DATE,NO_ENGINE_SUBSTITUTION"
innodb_rollback_on_timeout=1
innodb_lock_wait_timeout=600
max_connections=1000
log-bin=mysql-bin
binlog-format = 'ROW'

Restart MySQL and deploy the database:

systemctl restart mysql
cloudstack-setup-databases cloud:cloud@localhost --deploy-as=root: -i 192.168.1.10

Storage Setup

apt-get install nfs-kernel-server quota

Create NFS exports:

echo "/export  *(rw,async,no_root_squash,no_subtree_check)" > /etc/exports
mkdir -p /export/primary /export/secondary
exportfs -a

Configure and restart NFS:

echo RPCMOUNTDOPTS=\"-p 892 --manage-gids\" >> /etc/default/nfs-kernel-server
echo STATDOPTS=\"--port 662 --outgoing-port 2020\" >> /etc/default/nfs-common
echo NEED_STATD=yes >> /etc/default/nfs-common
echo RPCRQUOTADOPTS=\"-p 875\" >> /etc/default/quota

systemctl restart nfs-kernel-server quota

ARM64 hosts

Seed an ARM64 systemvm template manually from the management server before launching a zone. For CloudStack 4.22:

wget http://download.cloudstack.org/systemvm/4.22/systemvmtemplate-4.22.0-aarch64-kvm.qcow2.bz2
/usr/share/cloudstack-common/scripts/storage/secondary/cloud-install-sys-tmplt \
    -m /export/secondary -f systemvmtemplate-4.22.0-aarch64-kvm.qcow2.bz2 -h kvm \
    -o localhost -r cloud -d cloud

Future CloudStack releases will automate ARM64 systemvm template installation.

KVM Host Setup

apt-get install qemu-kvm cloudstack-agent

Enable VNC for console proxy:

sed -i -e 's/\#vnc_listen.*$/vnc_listen = "0.0.0.0"/g' /etc/libvirt/qemu.conf

On Ubuntu 22.04/24.04, add LIBVIRTD_ARGS="--listen" to /etc/default/libvirtd:

echo LIBVIRTD_ARGS=\"--listen\" >> /etc/default/libvirtd

Mask the socket-based listeners (required for CloudStack compatibility):

systemctl mask libvirtd.socket libvirtd-ro.socket libvirtd-admin.socket libvirtd-tls.socket libvirtd-tcp.socket
systemctl restart libvirtd

Set legacy connection mode in /etc/libvirt/libvirt.conf (important on Ubuntu 24.04):

remote_mode="legacy"

Configure TCP listener in /etc/libvirt/libvirtd.conf:

echo 'listen_tls=0' >> /etc/libvirt/libvirtd.conf
echo 'listen_tcp=1' >> /etc/libvirt/libvirtd.conf
echo 'tcp_port = "16509"' >> /etc/libvirt/libvirtd.conf
echo 'mdns_adv = 0' >> /etc/libvirt/libvirtd.conf
echo 'auth_tcp = "none"' >> /etc/libvirt/libvirtd.conf
systemctl restart libvirtd

ARM64 required settings

Add to /etc/cloudstack/agent/agent.properties:

guest.cpu.arch=aarch64
guest.cpu.mode=host-passthrough
host.cpu.manual.speed.mhz=1500
host.reserved.mem.mb=800

host.cpu.manual.speed.mhz is required because Linux on ARM64 cannot always report the correct CPU speed. Adjust host.reserved.mem.mb as needed (default is 1024 MB).

Hosts running Docker or other services

Add to /etc/sysctl.conf and run sysctl -p:

net.bridge.bridge-nf-call-arptables = 0
net.bridge.bridge-nf-call-iptables = 0

Non-standard vendor / virtual environment

Set a unique host UUID for libvirt if needed:

apt-get install uuid
UUID=$(uuid)
echo host_uuid = \"$UUID\" >> /etc/libvirt/libvirtd.conf
systemctl restart libvirtd

Firewall Setup

If ufw is active (ufw status), open the required ports:

ufw allow mysql
ufw allow proto tcp from any to any port 22
ufw allow proto tcp from any to any port 1798
ufw allow proto tcp from any to any port 16509
ufw allow proto tcp from any to any port 16514
ufw allow proto tcp from any to any port 5900:6100
ufw allow proto tcp from any to any port 49152:49216

Or configure iptables for your management network (192.168.1.0/24):

NETWORK=192.168.1.0/24
iptables -A INPUT -s $NETWORK -m state --state NEW -p udp --dport 111 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 111 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 2049 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 32803 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p udp --dport 32769 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 892 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 875 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 662 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 8250 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 8080 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 9090 -j ACCEPT
iptables -A INPUT -s $NETWORK -m state --state NEW -p tcp --dport 16514 -j ACCEPT
apt-get install iptables-persistent

Disable AppArmor for libvirt:

ln -s /etc/apparmor.d/usr.sbin.libvirtd /etc/apparmor.d/disable/
ln -s /etc/apparmor.d/usr.lib.libvirt.virt-aa-helper /etc/apparmor.d/disable/
apparmor_parser -R /etc/apparmor.d/usr.sbin.libvirtd
apparmor_parser -R /etc/apparmor.d/usr.lib.libvirt.virt-aa-helper

Start Control Plane

cloudstack-setup-management
systemctl status cloudstack-management
tail -f /var/log/cloudstack/management/management-server.log

Once the management server is up, log in at http://192.168.1.10:8080/client with username admin and password password.

Deploy Your Private Cloud

The following sets up an advanced zone (no security groups) in a typical 192.168.1.0/24 network.

Deploy DataCenter - Step by Step

1. Create Zone

Go to Infrastructure > Zone, click Add Zone, select Advanced Zone:

Name         - any name
Public DNS 1 - 8.8.8.8
Internal DNS - 192.168.1.1
Hypervisor   - KVM

2. Setup Network

Use the default VLAN isolation on a single physical NIC (carries all traffic types). If iproute2 is installed and MTUs are configured, VXLAN can also be used.

Public traffic:

Gateway  - 192.168.1.1
Netmask  - 255.255.255.0
VLAN/VNI - (leave blank for untagged)
Start IP - 192.168.1.20
End IP   - 192.168.1.50

3. Pod Configuration

Name                           - any name
Gateway                        - 192.168.1.1
Start/end reserved system IPs  - 192.168.1.51-192.168.1.80

4. Guest Traffic

VLAN/VNI range: 700-900

5. Create Cluster

Name       - any name
Hypervisor - KVM

6. Add First Host

Hostname - 192.168.1.10
Username - root
Password - <root password or leave blank for public key>

7. Add Primary Storage

Name     - any name
Scope    - zone-wide
Protocol - NFS
Server   - 192.168.1.10
Path     - /export/primary

8. Add Secondary Storage

Provider - NFS
Name     - any name
Server   - 192.168.1.10
Path     - /export/secondary

9. Launch Zone

Click Launch Zone - CloudStack will:

Create the zone and physical networks
Add traffic types, enable network providers and virtual router elements
Create the pod, configure public and guest traffic
Add the host, mount primary storage
Set up secondary storage and complete zone creation

10. Enable Zone

Confirm and enable the zone. Wait for System VMs to appear under Infrastructure → System VMs, then your IaaS cloud is ready.

Register Templates

Distro	x86_64 Template	ARM64 Template
Ubuntu 24.04	x86_64	arm64
Ubuntu 22.04	x86_64	arm64
Debian 12	x86_64	arm64
AlmaLinux 9	x86_64	arm64
OpenSUSE 15	x86_64	arm64

Add Networks

Once System VMs are up and running, you may create isolated network or VPC for your account for the built-in admin account or any new user account you may created that can be later used to deploy instances.

For simplicity, you may also create a shared network in the unused IP address space of your home/private network. For example, create shared network using API/CLI or UI under Network > Guest Networks > Add Network > Shared using:

Physical Network - cloudbr0
VLAN/VNI         - untagged
IPv4 Gateway     - 192.168.1.1
IPv4 Netmask     - 255.255.255.0
IPv4 Start IP    - 192.168.1.81
IPv4 End IP      - 192.168.1.100
DNS1             - 192.168.1.1
DNS2             - 1.1.1.1

Deploy an Instance

Go to Compute → Instances → Add Instance (or use the top-nav Create button):

Zone             - select your zone
Arch             - x86_64 or ARM64
Image            - your registered template
Compute Offering - select or create an offering
Networks         - one or more guest networks
SSH Key Pairs    - select your key pair
Name             - (optional)

Hit Launch Instance - your instance will be created!

Integrations

Name	Link
CloudMonkey CLI	github.com/apache/cloudstack-cloudmonkey
Terraform Provider	github.com/apache/cloudstack-terraform-provider
Ansible Collection	github.com/ngine-io/ansible-collection-cloudstack
Kubernetes Provider	github.com/apache/cloudstack-kubernetes-provider
Cluster API Provider	github.com/kubernetes-sigs/cluster-api-provider-cloudstack
Go SDK	github.com/apache/cloudstack-go
Benchmarking Tool	github.com/apache/cloudstack-csbench

More integrations at cloudstack.apache.org/integrations.
